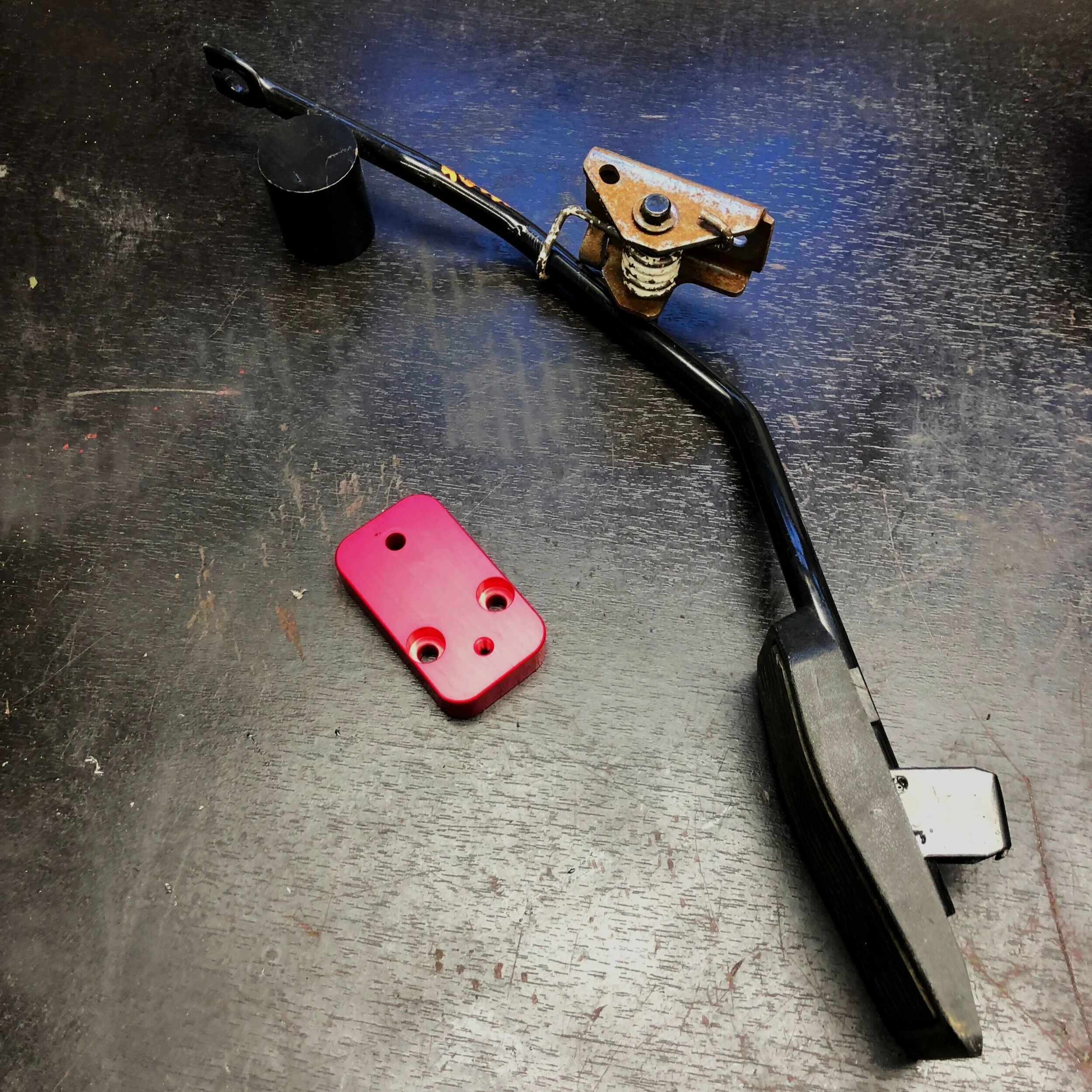

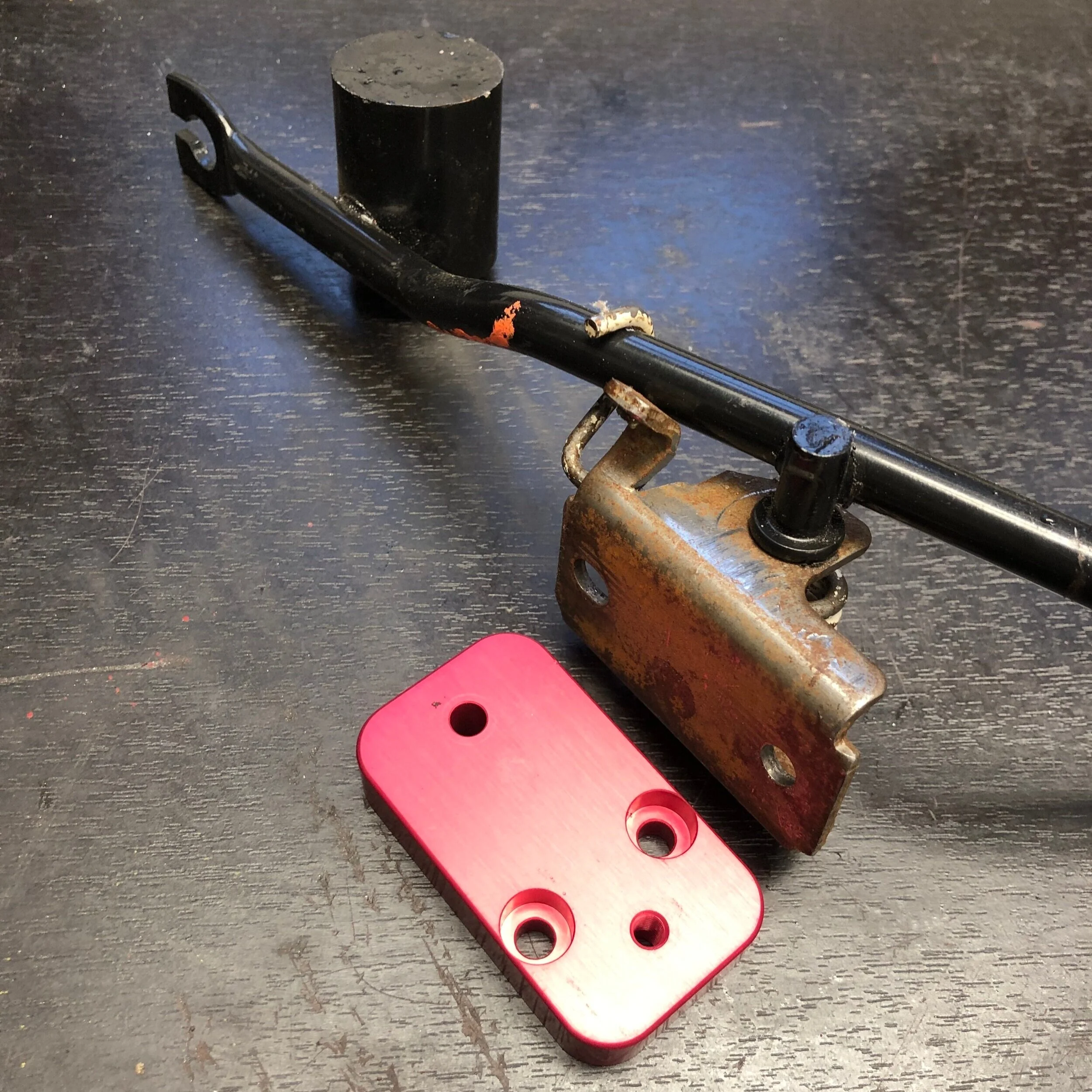

Billet aluminum accelerator pedal adapter plate. This plate adapts the entire accelerator pedal assembly from a 2000-2006 B15 Nissan Sentra to the stock 510 pedal mount.

This is a bolt in solution for your engine swap throttle. It provides a pedal that is newer and probably actually has a rubber left on the foot pad. The OEM pedal is a stout steel assembly with a stiff return spring and, most importantly, the proper fork connection for a modern throttle cable. Almost all of the Nissan throttle cables, from the 90’s until the switch to electric pedals in recent yeas, use the same cable connection. This allows you to search the scrapyard for a cable length that is the perfect fit for your build.

With the this bracket, the B15 pedal, and a throttle cable of your desired length, the throttle connection for your 510 engine swap is now a painless bolt in affair.

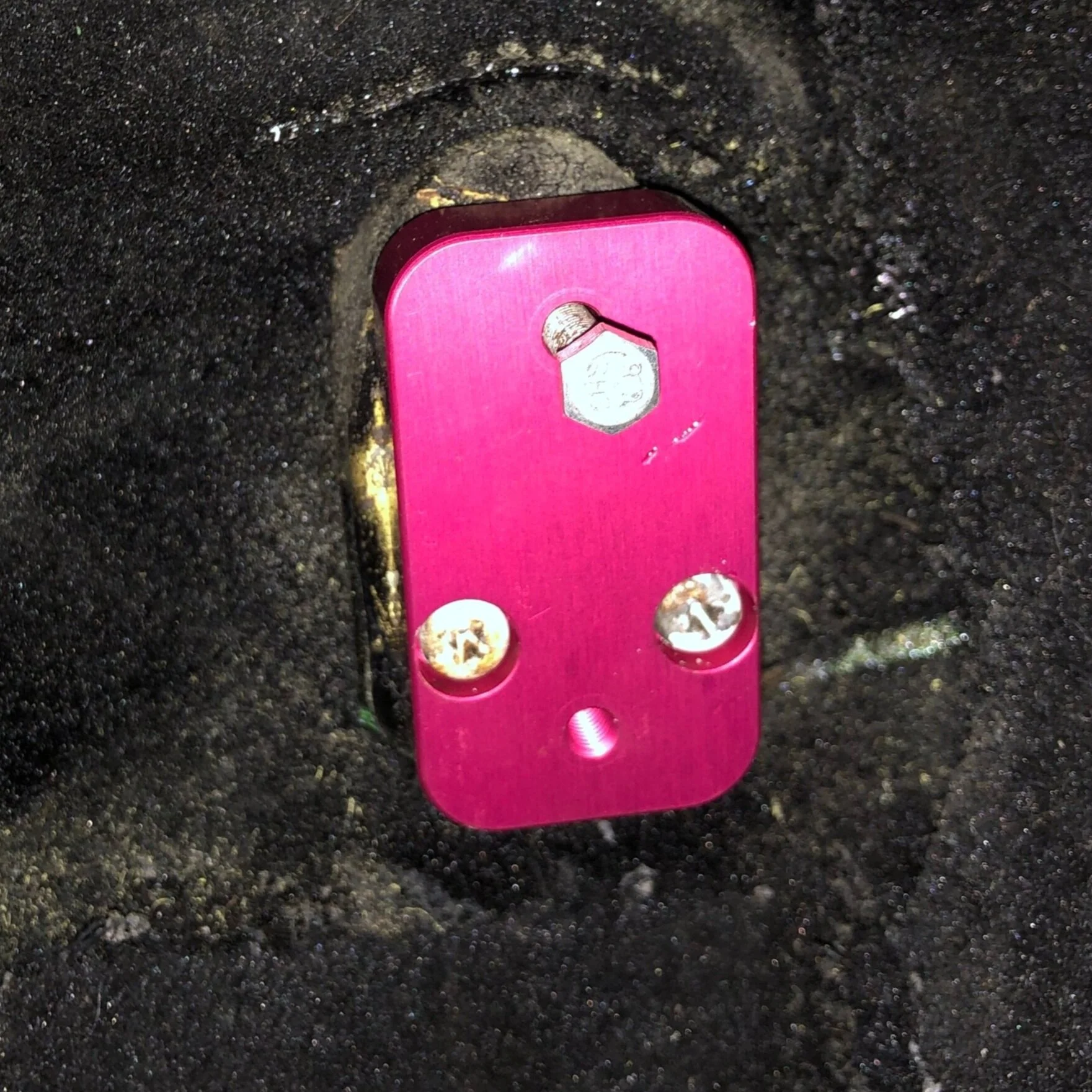

Simply bolt the adapter to the stock pedal mount. Then bolt the new pedal assembly to the adapter.

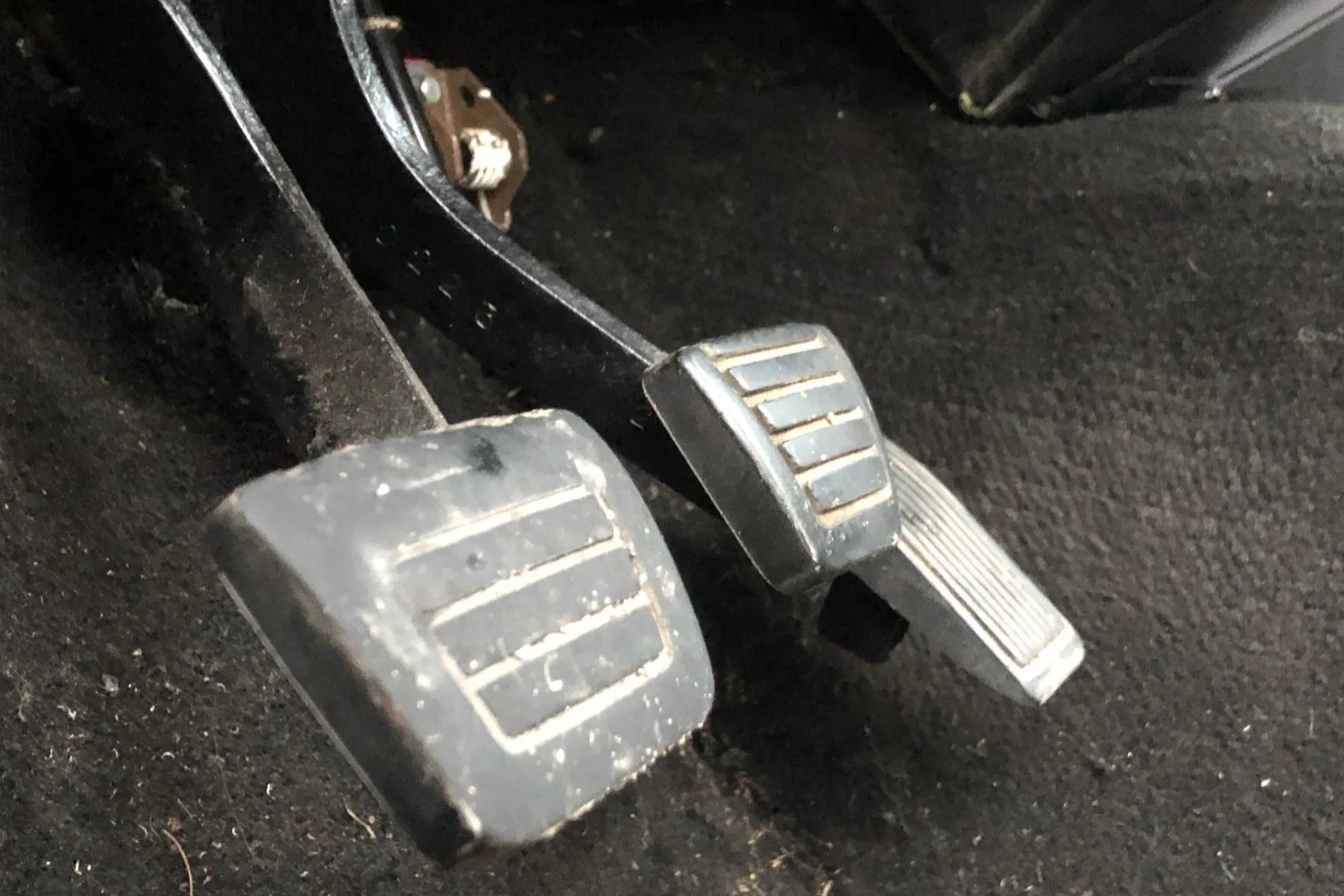

The new pedal is positioned to line up with the existing firewall opening. As well the pedal will strike the stock full throttle pedal hard stop adjuster on the 510 allowing you to protect your cable. The mount your cable and snap it in to place on the pedal fork. The off throttle hard stop is integrated into the pedal assembly and provides a comfortable pedal location.

Add parts to cart and check out to receive files via e-mail.
